उत्पाद विवरण:
|
| अधिकतम कार्य -दबाव: | 120 साई (0.84MPA, 8.4bar) | अधिकतम प्रवाह दर: | 270GPM (1022L/M) |
|---|---|---|---|
| अधिकतम पारस्परिक गति: | 135cpm | अधिकतम सक्शन ऊंचाई: | 5 मी |
| अधिकतम अनुमत अनाज: | 0.37in। (9.4 मिमी) | अधिकतम वायु खपत: | 180SCFM (90L/S) |
| वायु -इनलेट आकार: | 3/4 इंच | एयर आउटलेट का आकार: | में 1 |
| द्रव इनलेट आकार: | 3 में | द्रव आउटलेट आकार: | 3 में |
| पंप वजन: | 79 किग्रा | लागू तापमान: | 5-80 ° C |
| रिश्ते का प्रकार: | निकला हुआ किनारा कनेक्शन | सीलिंग सामग्री: | पीटीएफई |
| पंप बॉडी सामग्री: | पीपी | ||
| प्रमुखता देना: | 5-80°C Diaphragm Pump,270gpm Max Flow Pneumatic Diaphragm Pump,Hytrel Diaphragm Air Operated Diaphragm Pump |
||

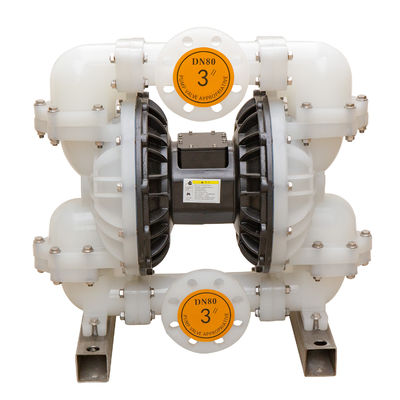

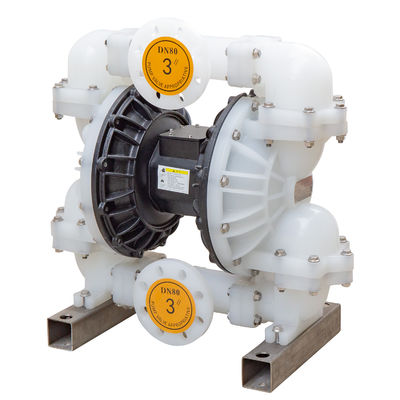

High-performance diaphragm pump designed for wastewater and drinking water treatment in machining applications.
| Specification | Value |
|---|---|
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 270gpm (1022L/M) |
| Max Reciprocating Speed | 135cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.37in. (9.4mm) |
| Max Air Consumption | 180scfm (90L/S) |
| Air Inlet Size | 3/4in |
| Air Outlet Size | 1in |
| Fluid Inlet Size | 3in |
| Fluid Outlet Size | 3in |
| Weight | PP pump: 79KGS |

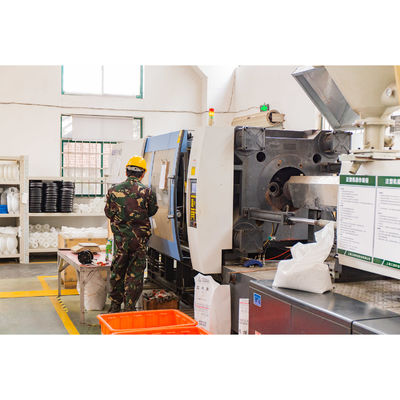

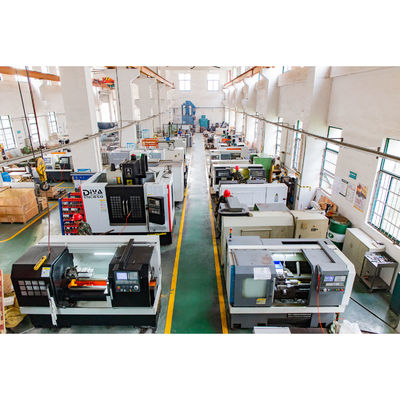

Headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Recognized as a High-Tech Enterprise and Credit Company for consecutive years.
Wetted parts: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N
Available sizes: 1/4" to 3"
Connection types: Threaded (1/4" to 1-1/2" plastic pumps, all metal pumps) or Flanged (1/2" to 3" plastic pumps)
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
D/P, T/T, Western Union - please confirm with us for exact order.
Depends on quantity. Generally 1-7 working days.
Cartons with foam inside & wooden case & pallet.
By international express or sea.
15 years warranty for air motor, 5 years for pump body.
Yes, we can produce according to custom requirements.
